Description

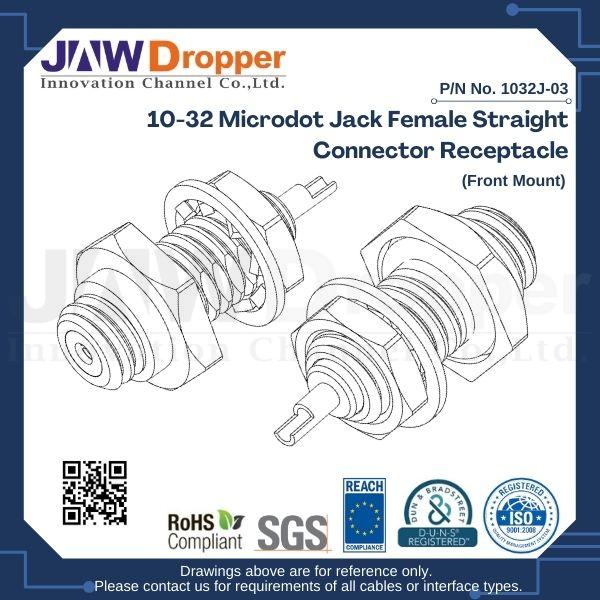

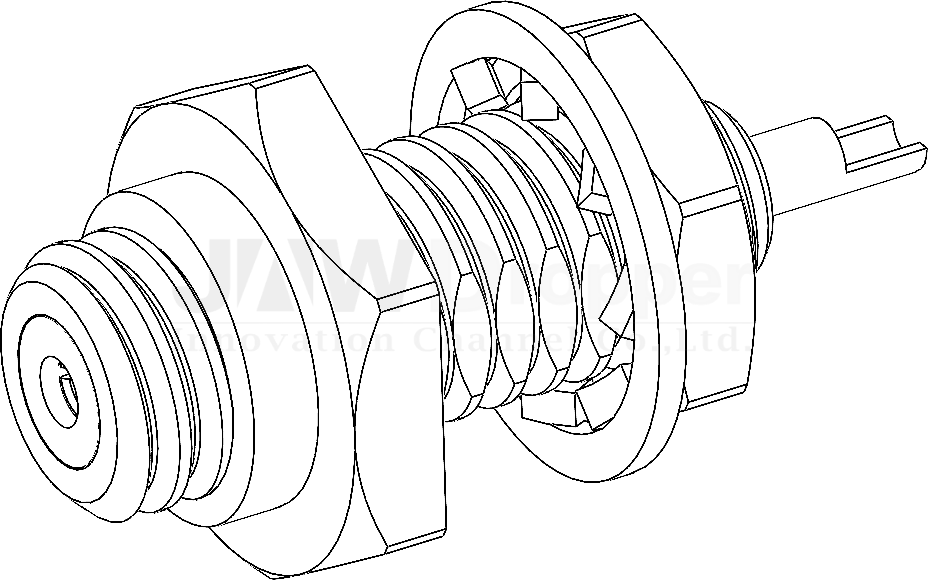

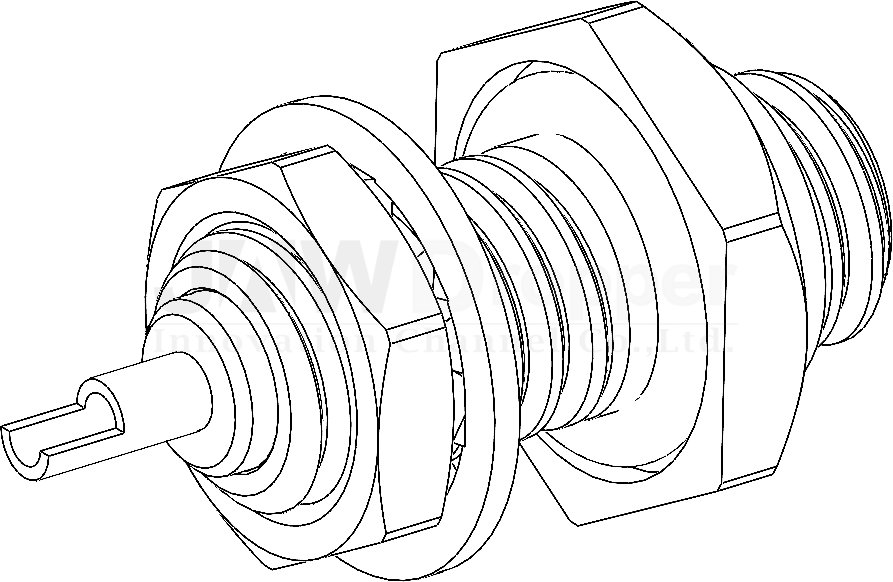

10-32 Microdot Connectors
Jaw-Dropper 10-32 (Microdot) connectors series is built to precise microwave and RF industry specifications with 50 Ohm impedance. Its interface is designed to terminate to cable(coax). This series is part of the very extensive selection of radio frequency interconnect components. RoHS and REACH compliant.
FEATURES AND BENEFITS
- Frequency range up to 2 GHz
- Screw- lock coupling system
- High contact quality
APPLICATIONS
- General Purpose Test
- Custom Cable Assemblies
10-32 MICRODOT CONNECTOR SPECIFICATIONS
| 10-32 Connectors Specifications – 50Ohm | |
| Impedance | 50 Ohm |
| Frequency Range | DC – 2 GHz Max |
| Insulation Resistance | ≥ 5 x 10³ MΩ |
| Center Contact Resistance | ≤ 3.0 mΩ |
| Outer Contact Resistance | ≤ 3.0 mΩ |
| Contact Current | (DC) ≤ 3 A typ. |
Note: These characteristics are typical and may not apply to all connectors.
