Description

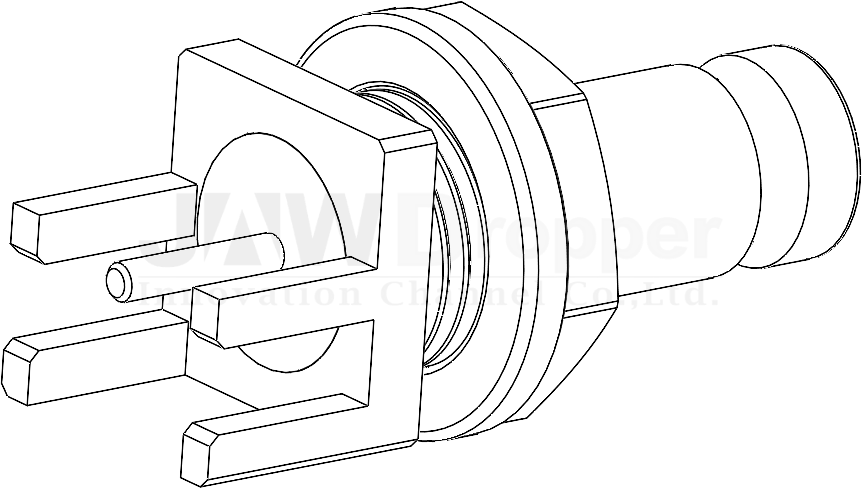

1.0-2.3 CONNECTORS
The 1.0-2.3 RF Coaxial connectors offer various coupling mechanisms enable plug/male to connect with any jack/female type, performing at 50 Ohm up to 10 GHz and are characterized by high electrical stability. With the quick-lock/push-pull locking/coupling design, this series allows quick installation and makes its interface an ideal solution for applications where space constraints exist.
FEATURES AND BENEFITS
- Patented push-pull coupling mechanism
- Quick connect and disconnect
- Space saving compact design
- Ideal for high vibration applications
APPLICATIONS
- Base Stations
- Data Communications
- Telecommunications/Central Office
- Routers
- Filters & Wireless Components
- Switching Equipment
- Video Processors
- Encoders
- Cameras
1.0/2.3 CONNECTOR SPECIFICATIONS
| 1.0-2.3 Connectors Specifications – 50Ohm | |
| Impedance | 50 Ohm |
| Frequency Range | DC – 10 GHz |
| Voltage Rating | 250 Volts RMS Max Continuous |
| Dielectric Withstanding Voltage | 750 VRMS Max |
| VSWR (Return Loss) | |
| DC – 1 GHz | 1.052 (-32 dB) Max |
| 1 – 4 GHz | 1.15 (-23 dB) Max |
| 4 – 10 GHz | 1.38 (-16 dB) Max |
| Insulation Resistance | 10000 MΩ Min |
| Center Contact Resistance | 6 mΩ Min |
| Outer Contact Resistance | 3 mΩ Min |
| RF Leakage | -90 dB Min (DC – 1 GHz) |
| Insertion Loss | .1 √(f(GHz)) dB Max |
| Power Handling | 133 W @ 1 GHz @ 25 ºC |
| 1.0-2.3 Connectors Specifications – 75Ohm | |
| Impedance | 75 Ohm |
| Frequency Range | DC- 3 GHz (0 – 12 GHz on Extended Range Designs) |
| Voltage Rating | 250 Volts RMS Max Continuous |
| Dielectric Withstanding Voltage | 750 VRMS Max |
| VSWR (Return Loss) | |
| DC – 2 GHz | 1.22 (-20 dB) Typ. |
| Insulation Resistance | 10000 MΩ Min |
| Center Contact Resistance | 6 mΩ Min |
| Outer Contact Resistance | 3 mΩ Min |
| RF Leakage | -90 dB Min (DC – 1 GHz) |
| Insertion Loss | .1 √(f(GHz)) dB Max |
| Power Handling | 133 W @ 1 GHz @ 25 ºC |
Note: These characteristics are typical and may not apply to all connectors.
