UHF Adapters

JAW-DROPPER offers Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

UHF ADAPTERS

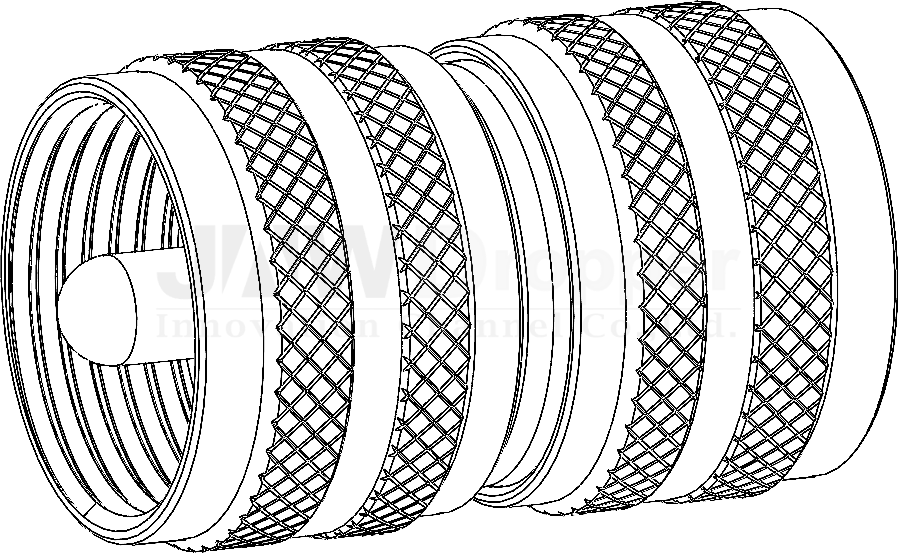

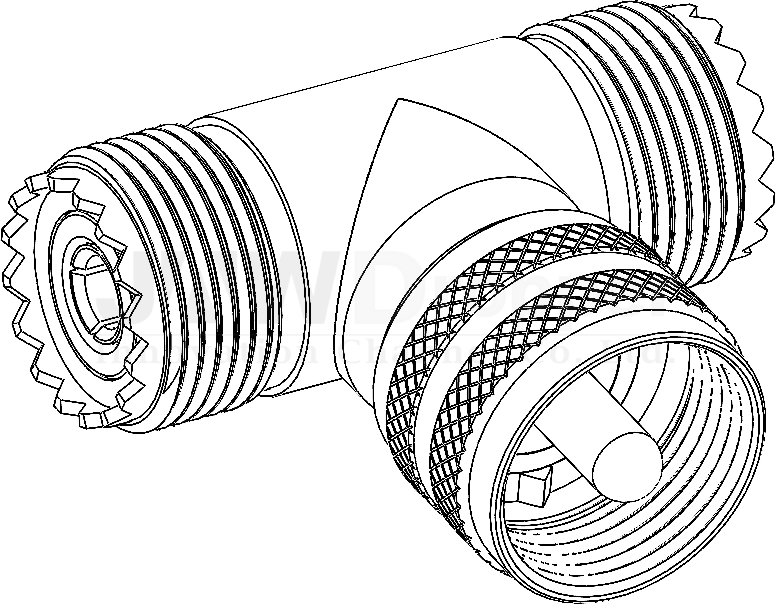

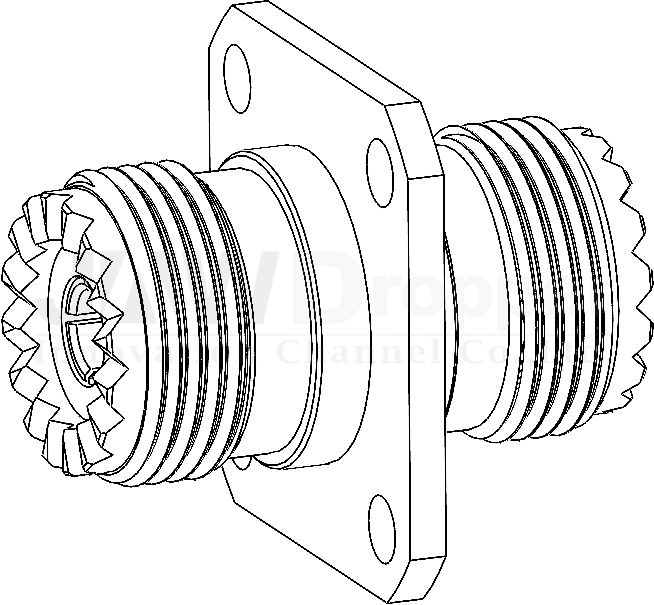

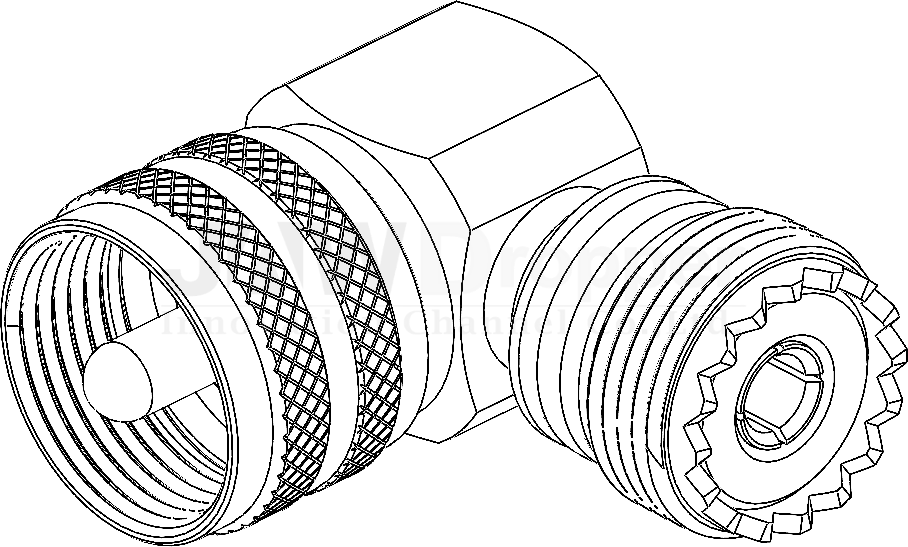

UHF Adapters



UHF connectors feature a threaded coupling and are popularly used because of its ease of assembly. The UHF solderable screw-on termination feature requires no specialized crimping tools. It is a widely used standard connector for HF transmission lines on full-sized radio equipment, with BNC connectors predominating for smaller, hand-held equipment. UHF are screw (5/8 x 24UNEF) coupled and suitable for use up to 300MHz and are typically used in amateur radio, CB radio and VHF.

FEATURES AND BENEFITS

  • Optional reducing adapters accommodate a wide range of popular coaxial cables
  • Solder termination types require no special assembly tools
  • Crimp termination types provide a lower cost installation method
  • Large-size threaded coupling is a rugged design
  • Non-demanding specifications and low cost

APPLICATIONS

  • Antennas
  • Military
  • Distributed Antenna Systems (DAS)
  • Public Address Systems
  • Low-Frequency Applications

UHF CONNECTOR SPECIFICATIONS

UHF Connectors Specifications
ImpedanceNon-Constant
Frequency RangeDC – 300 MHz (DC – 1 GHz on Extended Range Designs)
Voltage Rating500 Volts RMS Max Continuous
Dielectric Withstanding Voltage1500 VRMS Max
Insulation Resistance5000 MΩ Min
Power Handling500 W @ 100 MHz @ 25ºC

Note: These characteristics are typical and may not apply to all connectors.
