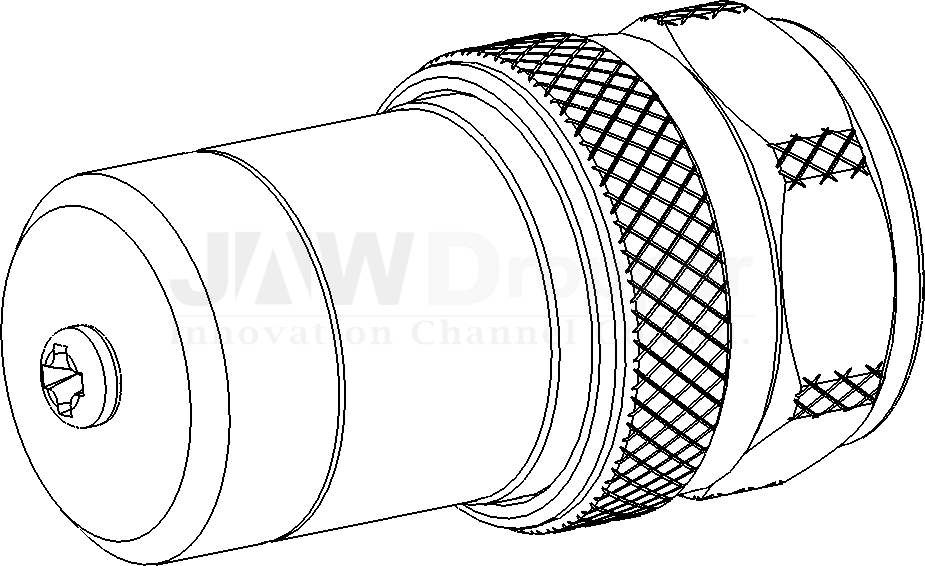

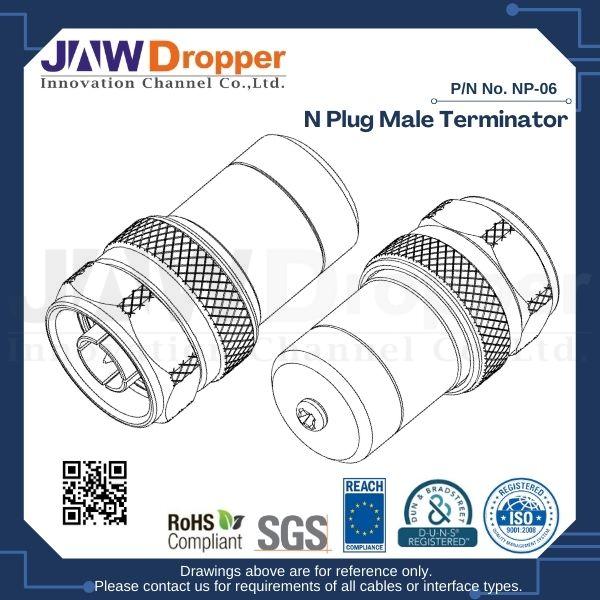

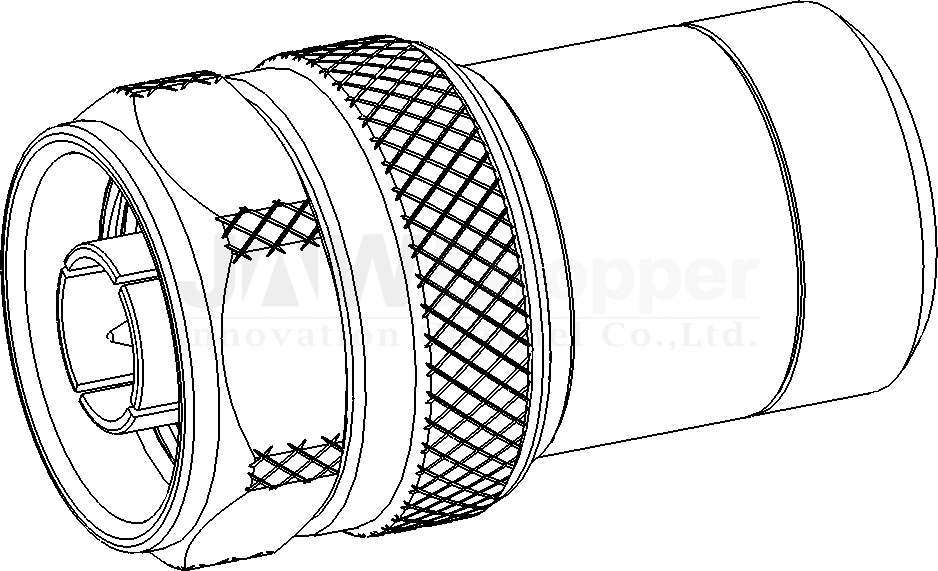

N Plug Male Terminator

JAW-DROPPER offers N-Type Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

N Plug Male Terminator N Plug Male Terminator N Plug Male Terminator

N-Type CONNECTORS

N-Type connectors (N connectors) are used to join coaxial cables as durable, threaded, weatherproof, medium-size RF connectors with consistent performance which includes models that support up to 18 GHz.
N-Type connector features a threaded coupling mechanism and is fully interchangeable with N-Type connectors for all systems where ideal RF and mechanical performance is critical.

FEATURES AND BENEFITS

  • Broad line of military, industrial and commercial grade products available
  • Excellent RF performance from DC to 11 GHz, and DC to 18 GHz on extended range designs
  • Threaded coupling mechanism ideal for vibration resistance
  • Accommodates a wide range of coaxial cables including low loss types

APPLICATIONS

  • Antennas
  • Base Stations
  • Instrumentation
  • Satellite Systems
  • WLAN
  • Radar Systems
  • Broadcast
  • Surge Protection

N-Type CONNECTOR SPECIFICATIONS

N-Type Connectors Specifications – 50Ohm
Impedance50 Ohm
Frequency RangeDC – 11 GHz (DC – 18 GHz on Extended Range Designs)
Voltage Rating500 Volts RMS Continuous
Dielectric Withstanding Voltage1500 VRMS Max
VSWR  (Return Loss)
     M39012 Straight Connectors
     DC – 11 GHz1.30 (-18 dB) Max
     M39012 Right Angle Connectors
     DC – 9 GHz1.35 (-16 dB) Max
     9 – 11 GHz1.5 (-14 dB) Max



N-Type Connectors Specifications – 75Ohm
Impedance75 Ω
Frequency rangeDC to 6 GHz
Return loss (cable connector straight)≥ 26 dB (typ.)
Insertion loss≤ 0.1 x √ f [GHz] dB
Insulation resistance≥ 5 GΩ
Center contact resistance≤ 1.5 mΩ
Outer contact resistance≤ 0.25 mΩ
Test voltage2500 V rms
Working voltage1400 V rms
Power handling≥ 128 dB @ DC to 1 GHz

Note: These characteristics are typical and may not apply to all connectors.
