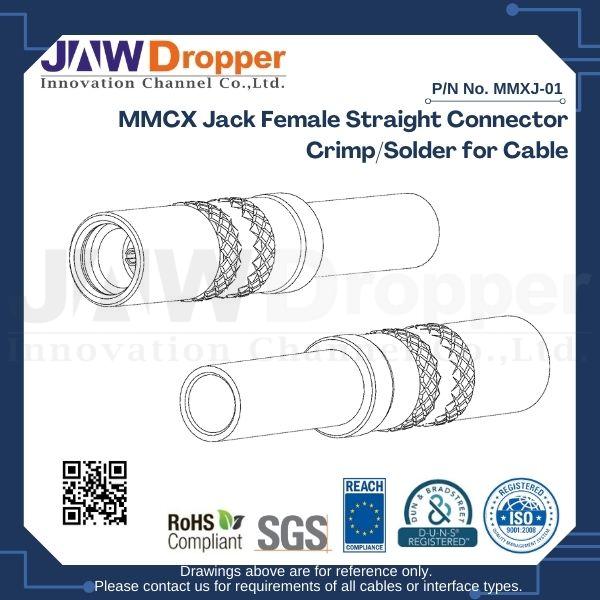

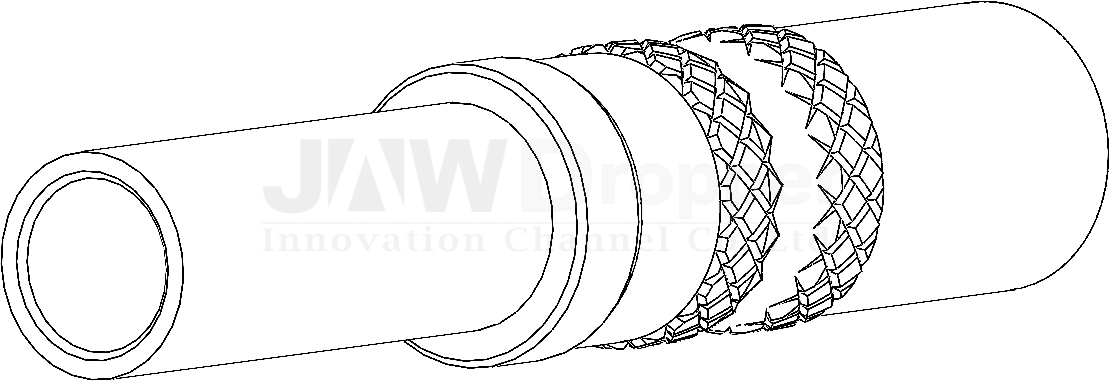

MMCX Jack Female Straight Connector Crimp/Solder for Cable

JAW-DROPPER offers Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

MMCX CONNECTORS



MMCX Jack Female Straight Connector Crimp/Solder for Cable MMCX Jack Female Straight Connector Crimp/Solder for Cable MMCX Jack Female Straight Connector Crimp/Solder for Cable

The MMCX (Micro-Miniature Coaxial) connectors have a lock-snap mechanism which allows 360-degree rotation. It is a 50-ohm impedance interface with broadband capability of DC to 6 GHz and secure, fast, and easy snap-on / snap-off coupling. The feature of the MMCX connectors is that it’s a micro-miniature version of the MCX with smaller sizes and lightweight. MMCX connectors are designed for densely populated electronic packages and can be found on Wi-Fi PCMCIA cards or GPS as antenna connectors. On small devices like PDAs, GPS receivers, mobile phones, and GSM-Antennas, MMCX connectors also commonly used. In addition, they are also used by various brands of in-ear monitors to connect the cable to the individual earpieces. This allows for the cables to be replaced or swapped.

FEATURES AND BENEFITS

  • Broadband performance with low reflection
  • High-quality solution at a low cost
  • Quick connect/disconnect snap-on mating reduces installation time
  • Available in straight and right angle plugs and printed circuit board connectors

APPLICATIONS

  • Antennas
  • Instrumentation
  • Satcom
  • Base Stations
  • Telecommunications
  • Broadband
  • GPS

MMCX CONNECTOR SPECIFICATIONS

MMCX Connectors Specifications – 50Ohm
Impedance50 Ohm
Frequency RangeDC – 6 GHz
Voltage Rating170 Volts RMS Continuous
Dielectric Withstanding Voltage500 VRMS Max
VSWR  (Return Loss)
     DC – 4 GHz1.25 (-19 dB) Max
     4 – 6 GHz1.40 (-16 dB) Max
Insulation Resistance500 MΩ Min
Center Contact Resistance10 mΩ Max
Outer Contact Resistance5 mΩ Max
Insertion Loss.1 √(f(GHz)) dB Max
Power Handling63 W Max @ 1 GHz

Note: These characteristics are typical and may not apply to all connectors.
