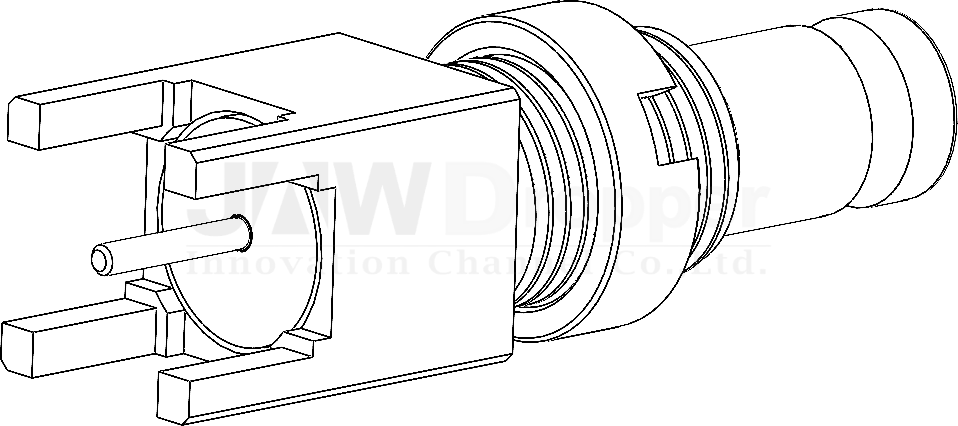

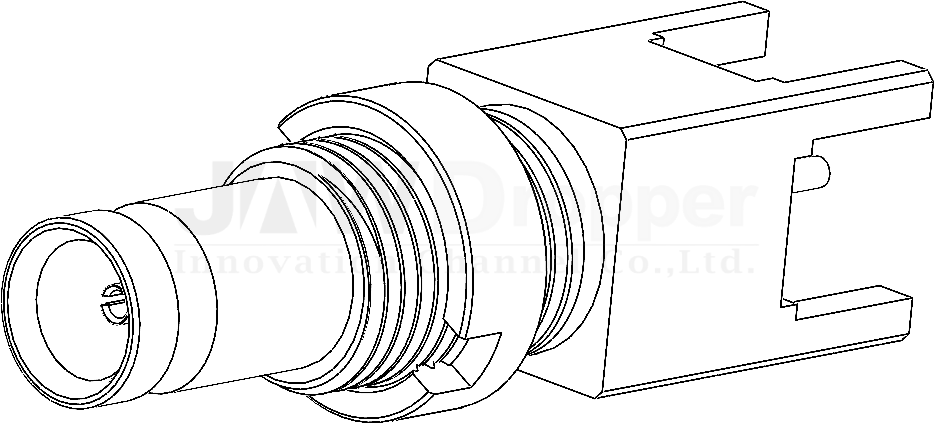

1.0/2.3 Jack Female Straight Connector Bulkhead Panel Receptacle (PCB Mount)

JAW-DROPPER offers Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

1.0/2.3 CONNECTORS

1.0/2.3 Jack Female Straight Connector Bulkhead Panel Receptacle (PCB Mount) 1.0/2.3 Jack Female Straight Connector Bulkhead Panel Receptacle (PCB Mount) 1.0/2.3 Jack Female Straight Connector Bulkhead Panel Receptacle (PCB Mount)



The 1.0-2.3 RF Coaxial connectors offer various coupling mechanisms enable plug/male to connect with any jack/female type, performing at 50 Ohm up to 10 GHz and are characterized by high electrical stability. With the quick-lock/push-pull locking/coupling design, this series allows quick installation and makes its interface an ideal solution for applications where space constraints exist.

FEATURES AND BENEFITS

  • Patented push-pull coupling mechanism
  • Quick connect and disconnect
  • Space saving compact design
  • Ideal for high vibration applications

APPLICATIONS

  • Base Stations
  • Data Communications
  • Telecommunications/Central Office
  • Routers
  • Filters & Wireless Components
  • Switching Equipment
  • Video Processors
  • Encoders
  • Cameras

1.0/2.3 CONNECTOR SPECIFICATIONS

1.0-2.3 Connectors Specifications – 50Ohm
Impedance50 Ohm
Frequency RangeDC – 10 GHz
Voltage Rating250 Volts RMS Max Continuous
Dielectric Withstanding Voltage750 VRMS Max
VSWR (Return Loss)
     DC – 1 GHz1.052 (-32 dB) Max
     1 – 4 GHz1.15 (-23 dB) Max
     4 – 10 GHz1.38 (-16 dB) Max
Insulation Resistance10000 MΩ Min
Center Contact Resistance6 mΩ Min
Outer Contact Resistance3 mΩ Min
RF Leakage-90 dB Min (DC – 1 GHz)
Insertion Loss.1 √(f(GHz)) dB Max
Power Handling133 W @ 1 GHz @ 25 ºC

Note: These characteristics are typical and may not apply to all connectors.
