UltraS BNC Jack Female Right Angle Connector Bulkhead Panel Receptacle (PCB Mount)

JAW-DROPPER offers Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

UltraS BNC Connectors

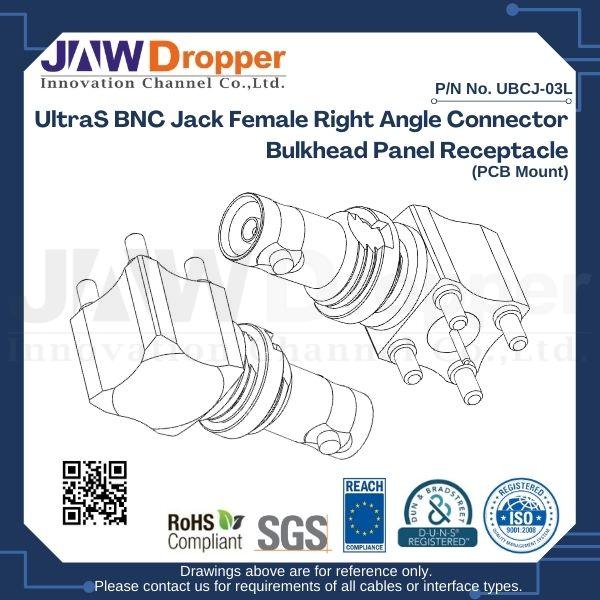

UltraS BNC Jack Female Right Angle Connector Bulkhead Panel Receptacle (PCB Mount)

UltraS BNC Jack Female Right Angle Connector Bulkhead Panel Receptacle (PCB Mount) UltraS BNC Jack Female Right Angle Connector Bulkhead Panel Receptacle (PCB Mount)



JawDropper UltraS connectors are developed to enhance electrical and mechanical performance with the stable, push and turn interface of a traditional BNC. The UltraS series provides tactile feedback and a positive lock for quick and guaranteed mating. The name UltraS derives from its 4-times-smaller size than traditional BNC with both 50 and 75-ohm impedance. The same cable prep and termination specifications of legacy broadcast connectors make adopting HD-BNC seamless.

FEATURES AND BENEFITS

  • Trusted bayonet style positive lock
  • Closed entry interface
  • VSWR or Return Loss: 30 dB min @ 6 GHz (for all straight configurations)
  • Complete product portfolio including calibration kit, terminations and precision adapters
  • Assured mating with visual indicator

APPLICATIONS

  • Broadcast
  • Video Modules and Routers
  • Cameras
  • Military Radio
  • Instrumentation

UltraS BNC CONNECTOR SPECIFICATIONS

HD-BNC Connectors Specifications – 50 Ohm
Impedance50 Ohm
Frequency RangeDC – 6 GHz
Voltage Rating170 Volts RMS Max Continuous
Dielectric Withstanding Voltage500 VRMS Max
VSWR (Return Loss)
     DC – 4 GHz1.065 (-30 dB) Max
Insulation Resistance10000 MΩ Min
Center Contact Resistance5.0 mΩ Min
Outer Contact Resistance2.5 mΩ Min
RF Leakage60 dB Max @ 1 GHz
Insertion Loss.1 √(f(GHz)) dB Max



HD-BNC Connectors Specifications – 75 Ohm
Impedance75 Ohm
Frequency RangeDC- 6 GHz (0 – 18 GHz on 12G Products)
Voltage Rating170 Volts RMS Max Continuous
Dielectric Withstanding Voltage500 VRMS Max
VSWR (Return Loss)
     12G Products: DC – 6 GHz1.22 (-20 dB) Max
     12G Products: 6 – 12 GHz1.43 (-15 dB) Max
Insulation Resistance10000 MΩ Min
Center Contact Resistance5.0 mΩ Min
Outer Contact Resistance2.5 mΩ Min
RF Leakage60 dB Max @ 3 GHz
Insertion Loss.1 √(f(GHz)) dB Max

Note: These characteristics are typical and may not apply to all connectors.
