SSMB Jack Female Straight Connector Bulkhead Crimp for Cable (Panel Mount)

JAW-DROPPER offers Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

SSMB CONNECTORS

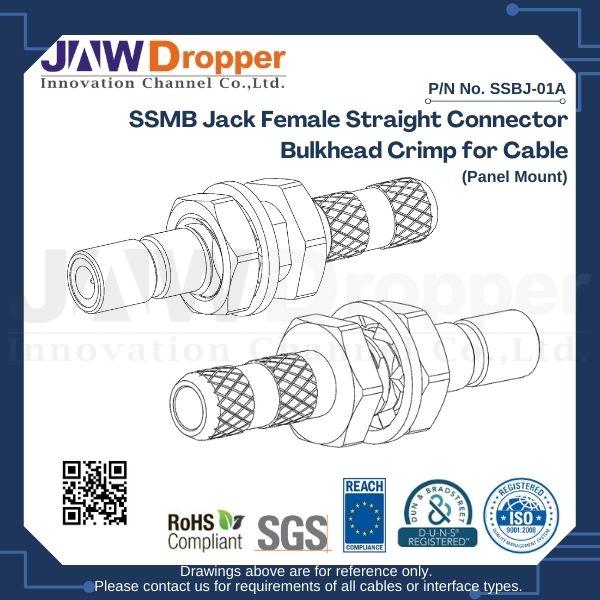

SSMB Jack Female Straight Connector Bulkhead Crimp for Cable (Panel Mount)



The SSMB connectors are ideal for military, instrumentation, PC/LAN, and wireless applications. The SSMB connector is designed with the snap-on mating interface and 50-Ohm impedance. Jaw-Dropper’s SSMB series provides excellent electrical performance in a micro-miniature footprint that can operate from DC to 12 GHz. Developed in 1995, this miniature version of regular SMB connectors is standardized according to IEC 60169-19. The design of SSMB connectors allows quick installation, dense packaging, and can be used in many applications as an alternative to larger connectors like SMAs.

FEATURES AND BENEFITS

  • Lightweight and space saving alternative to SMB
  • Snap-on interface for quick and easy installation
  • Gold and nickel plating available

APPLICATIONS

  • Military
  • Instrumentation
  • PC/LAN
  • Wireless

SSMB CONNECTOR SPECIFICATIONS

SSMB Connectors Specifications – 50Ohm
Impedance50 Ohm
Frequency RangeDC – 12.4 GHz
Voltage Rating250 Volts RMS Continuous
Dielectric Withstanding Voltage750 VRMS Max
VSWR  (Return Loss)
     DC – 3 GHz1.3 (-18 dB) Max
Insulation Resistance1000 MΩ Min
Center Contact Resistance5.0 mΩ Max
Outer Contact Resistance2.5 mΩ Max
RF Leakage-50 dB Max (2 – 3 GHz)
Insertion Loss.1 √(f(GHz)) dB Max

Note: These characteristics are typical and may not apply to all connectors.
