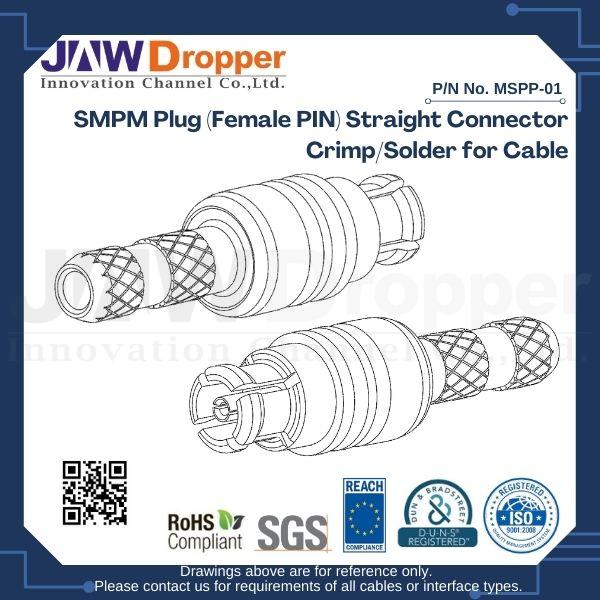

SMPM Plug (Female PIN) Straight Connector Crimp/Solder for Cable

JAW-DROPPER offers Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

SMPM CONNECTORS

SMPM Plug (Female PIN) Straight Connector Crimp/Solder for Cable SMPM Plug (Female PIN) Straight Connector Crimp/Solder for Cable SMPM Plug (Female PIN) Straight Connector Crimp/Solder for Cable



JawDropper SMPM RF connector series functions as a micro-miniature connector with a frequency range of DC to 65 GHz. Its interface of board-to-board and cable connections can minimize your PCB footprint for even the smallest, smartest devices. The SMPM connectors are commonly used in miniaturized high-frequency coaxial modules and are offered in both push-on and snap-on mating styles. Available in a cable-to-board mated pair, the plug side can be provided in either right angle or straight with termination capability to either 0.047” or 0.086”, semi-rigid or conformable coax. The receptacles are designed for surface, through-hole, or end launch mounting. This SMPM series of interconnects addresses small package design needs; it can be utilized as a highly shielded interconnect for high data rate applications or in a board-to-board system using a floating bullet adapter.

FEATURES AND BENEFITS

  • Small package size
  • Push-on and snap-on mating styles for quick installation
  • Designs available for board-to-board and cable-to-board configurations

APPLICATIONS

  • Antennas
  • Broadband
  • Wireless
  • Military
  • Instrumentation
  • Medical
  • Quantum Computing

SMPM CONNECTOR SPECIFICATIONS

SMPM Connectors Specifications – 50Ohm
Impedance50 Ohm
Frequency RangeDC – 26.5 GHz (DC – 65 GHz on Extended Range Designs)
Dielectric Withstanding Voltage325 VRMS Min
VSWR  (Return Loss)
     DC – 10 GHz1.15 (-23 dB) Max
     10 – 26.5 GHz1.25 (-19 dB) Max
     26.5 – 50 GHz1.35 (-16 dB) Max
Insulation Resistance5000 MΩ Min
Center Contact Resistance6 mΩ Max
Outer Contact Resistance2 mΩ Max
RF Leakage-85 dB Max (DC – 4 GHz)
Insertion Loss.1 √(f(GHz)) dB Max
Power Handling16 W @ 1 GHz @ 25ºC

Note: These characteristics are typical and may not apply to all connectors. connectors.
