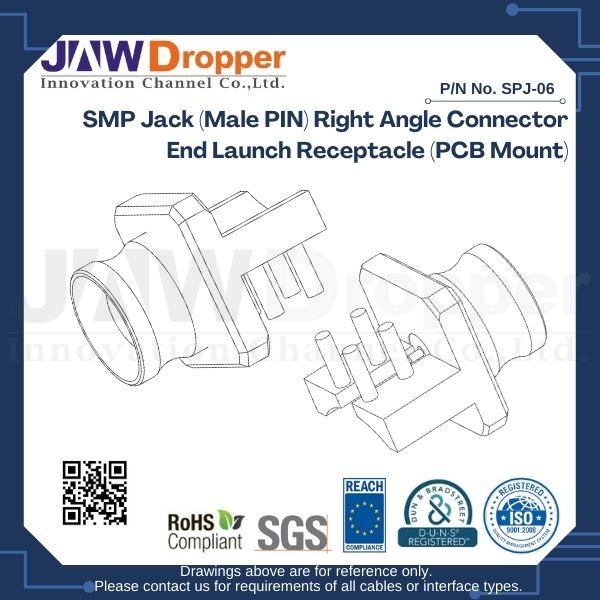

SMP Jack (Male PIN) Right Angle Connector End Launch Receptacle (PCB Mount)

JAW-DROPPER offers Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

SMP CONNECTORS

SMP Jack (Male PIN) Right Angle Connector End Launch Receptacle (PCB Mount) SMP Jack (Male PIN) Right Angle Connector End Launch Receptacle (PCB Mount) SMP Jack (Male PIN) Right Angle Connector End Launch Receptacle (PCB Mount)



The SMP RF connectors have a subminiature interface which is similar to MMCX connectors but offers a frequency range of DC to 40 GHz. SMP subminiature connectors are commonly used in miniaturized high-frequency coaxial modules and are well-proven, offering a high level of flexibility in alignment tolerances. It is offered in both push-on and snap-on mating styles, available in a cable-to-board mated pair, the plug side can be provided in either right angle or straight with termination capability to either 0.047” or 0.086”, semi-rigid or conformable coax. JawDropper SMP connectors are suitable for a wide range of board-to-board and cable-to-board applications up to 40 GHz.

FEATURES AND BENEFITS

  • Designed to accommodate both radial and axial misalignment
  • Push-on and snap-on mating styles for quick installation
  • Designs available for board-to-board and cable-to-board configurations

APPLICATIONS

  • Antennas
  • Broadband
  • Military
  • Instrumentation
  • Medical
  • Quantum Computing

SMP CONNECTOR SPECIFICATIONS

SMP Connectors Specifications – 50Ohm
Impedance50 Ohm
Frequency RangeDC – 26.5 GHz (DC – 40 GHz on Extended Range Designs)
Voltage Rating335 Volts RMS Max Continuous
Dielectric Withstanding Voltage500 VRMS Min
VSWR  (Return Loss)
     DC – 18 GHz1.2 (-21 dB) Max
     18 – 26.5 GHz1.3 (-18 dB) Max
     26.5 – 40 GHz1.7 (-12 dB) Max
Insulation Resistance5000 MΩ Min
Center Contact Resistance6 mΩ Max
Outer Contact Resistance2 mΩ Max
RF Leakage-85 dB Max (DC – 4 GHz)
Insertion Loss.1 √(f(GHz)) dB Max
Power Handling32 W @ 1 GHz @ 25ºC

Note: These characteristics are typical and may not apply to all connectors.
