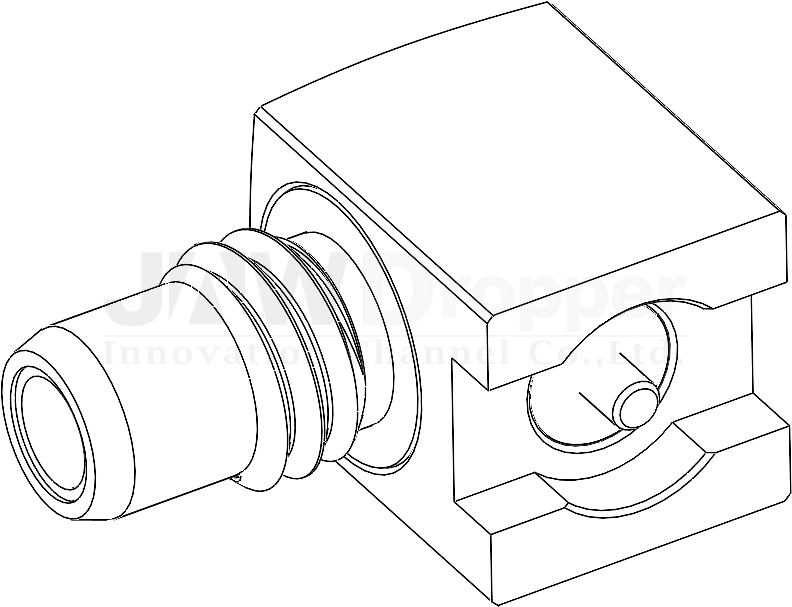

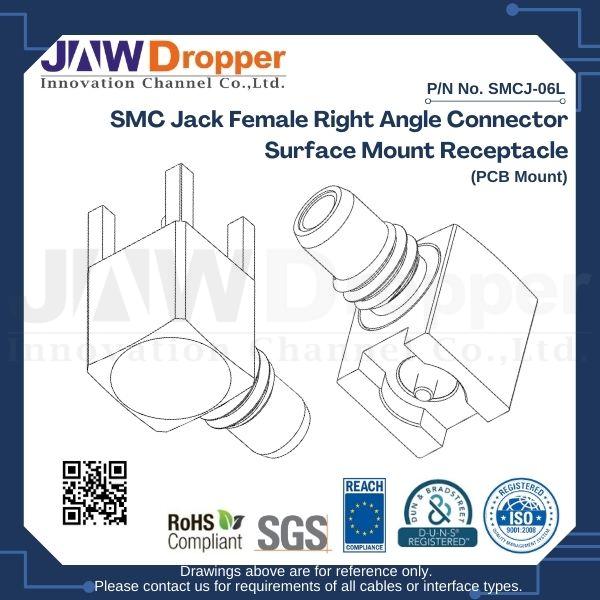

SMC Jack Female Right Angle Connector Surface Mount Receptacle (PCB Mount)

JAW-DROPPER offers Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

SMC CONNECTORS

SMC Jack Female Right Angle Connector Surface Mount Receptacle (PCB Mount) SMC Jack Female Right Angle Connector Surface Mount Receptacle (PCB Mount) SMC Jack Female Right Angle Connector Surface Mount Receptacle (PCB Mount)



The SMC coaxial RF connectors were developed in the 1960s. This series of RF connectors has an interface that features threaded coupling with 10-32 threads for various applications. The SMC RF connectors offer broadband performance with low reflection DC to 10 GHz. Available in 50-ohm configurations. The screw-on locking mechanism of SMC connectors provides a reliable connection and is primarily used in telecommunications and instrumentation applications. The interface of SMC plug male connectors works like a socket for the center contact. SMC jack female connectors also have a pin for the center contact and an external thread.

FEATURES AND BENEFITS

  • Conforms to the interface dimensions of MIL-STD-348
  • Threaded coupling ideal for applications where vibration resistance is important
  • Ideal for semi-rigid cables or miniature flexible cables

APPLICATIONS

  • Antennas
  • Instrumentation
  • Telecommunications
  • PC/LAN

SMC CONNECTOR SPECIFICATIONS

SMC Connectors Specifications – 50Ohm
Impedance50 Ohm
Frequency RangeDC – 4 GHz (DC – 10 GHz on Extended Range Designs)
Voltage Rating (Sea Level)335 Volts RMS Continuous
Voltage Rating (70,000 ft)85 Volts RMS Continuous
Dielectric Withstanding Voltage
     RG-178/RG-196 Group750 VRMS Min
     RG-174/RG-316/RG-188 Group1000 VRMS Min

Note: These characteristics are typical and may not apply to all connectors.
