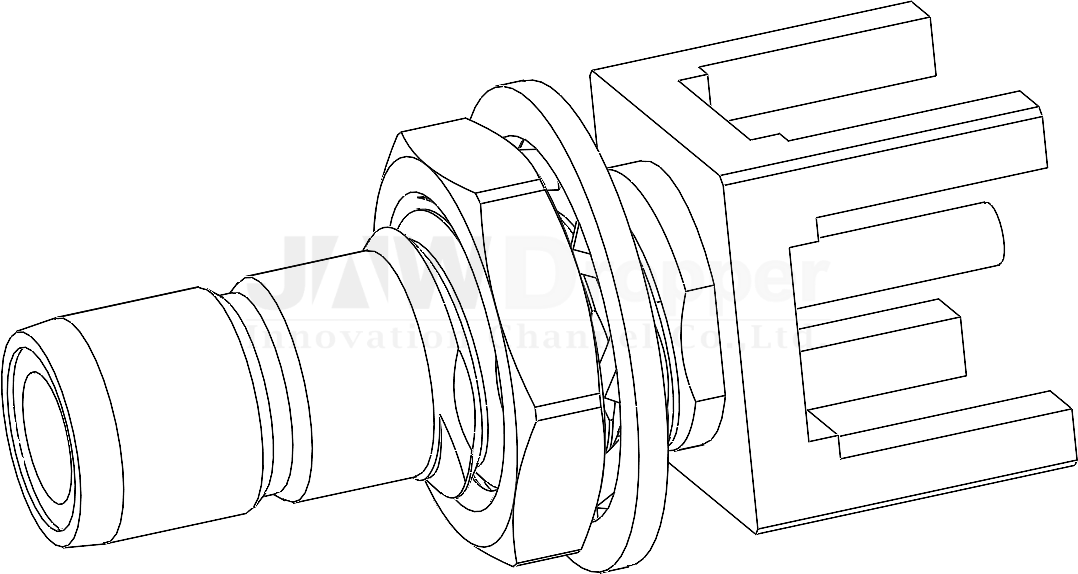

SMB Jack Female Straight Connector Bulkhead Panel Receptacle (PCB Mount)

JAW-DROPPER offers Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

SMB Connectors

SMB Jack Female Straight Connector Bulkhead Panel Receptacle (PCB Mount) SMB Jack Female Straight Connector Bulkhead Panel Receptacle (PCB Mount) SMB Jack Female Straight Connector Bulkhead Panel Receptacle (PCB Mount)

The SMB RF coaxial connector interface features shield/contact crimp/solder as an attachment method.
The snap-on coupling mechanism provides a fast and reliable connection for high packing density applications. These versatile connectors are available in various materials to provide a low-cost solution and can be used in internal devices and cable assemblies. Jaw-Dropper SMB coaxial connector series provides a minimum frequency of DC and a maximum frequency of 3 GHz. RoHS and REACH compliant.

FEATURES AND BENEFITS

  • Various plating options in nickel, gold, and tin lead
  • Quick connect/disconnect snap on mating reduces installation time
  • SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force

APPLICATIONS

  • Base Stations
  • Antennas
  • Radio Boards
  • PC/LAN
  • Global Positioning System (GPS)
  • Instrumentation
  • Telecommunications

SMB CONNECTOR SPECIFICATIONS

SMB Connector Specifications – 50/75 Ohm
Impedance50 Ohm
Frequency RangeDC – 4 GHz (DC – 10 GHz on Extended Range Designs)
Voltage Rating335 Volts RMS Continuous
Dielectric Withstanding Voltage1000 VRMS Max
VSWR  (Return Loss)

Note: These characteristics are typical and may not apply to all connectors.
