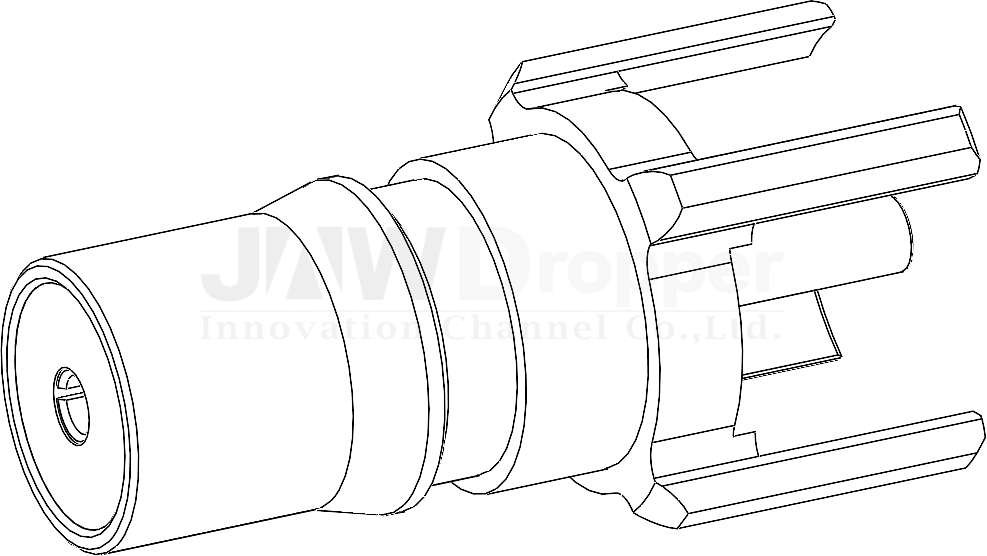

QMA Jack Female Straight Connector Receptacle (PCB Mount)

JAW-DROPPER offers Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

QMA CONNECTORS

QMA Jack Female Straight Connector Receptacle (PCB Mount) QMA Jack Female Straight Connector Receptacle (PCB Mount) QMA Jack Female Straight Connector Receptacle (PCB Mount)

Jaw-Dropper QMA connectors are available with 50-ohm impedance and the frequency range extends up to 18 GHz. The QMA connector shares the same internal construction and performance as the SMA series. Yet, the SMA connectors offer an easier, faster, and safer operation because of the innovative coupling mechanism, helping customers save significant time during production. The main difference lies in the interface: QMA connectors feature a 360º rotating snap-on locking characteristic instead of a threaded coupling, which enables it quick to install with low RF leakage and is tool-less. QMA connectors are commonly used in cellular base station hardware, SCADA radios, and a range of wireless test equipment, where durability, strength, and quick-disconnection features are required. SMA connectors can be rotated 360 degrees after they are mated, which improves the flexibility of installations.

FEATURES AND BENEFITS

  • Snap-on interface for quick and easy installation
  • High power handling capability
  • Rotatable 360° after connection for flexibility with installation

APPLICATIONS

  • Antennas
  • Base Stations
  • GPS

QMA CONNECTOR SPECIFICATIONS

QMA Connectors Specifications – 50Ohm
Impedance50 Ohm
Frequency RangeDC – 18 GHz
Voltage Rating335 Volts RMS Continuous
Dielectric Withstanding Voltage1000 VRMS Max
VSWR  (Return Loss)
DC – 3 GHz1.052 (-32 dB) Max
3 – 6 GHz1.12 (-32 dB) Max
Insulation Resistance5000 MΩ Min
Center Contact Resistance2.5 mΩ Max
Outer Contact Resistance3.0 mΩ Max
RF Leakage-120 dB Max (DC – 3 GHz)
Insertion Loss.06 √(f(GHz)) dB Max
Power Handling75 W @ 10 GHz @ 25ºC

Note: These characteristics are typical and may not apply to all connectors.
