MHV Adapters

JAW-DROPPER offers Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

MHV ADAPTERS

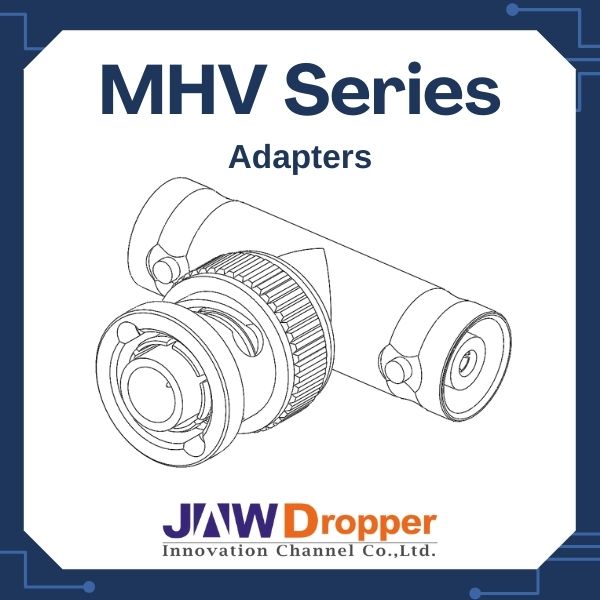

MHV Adapters

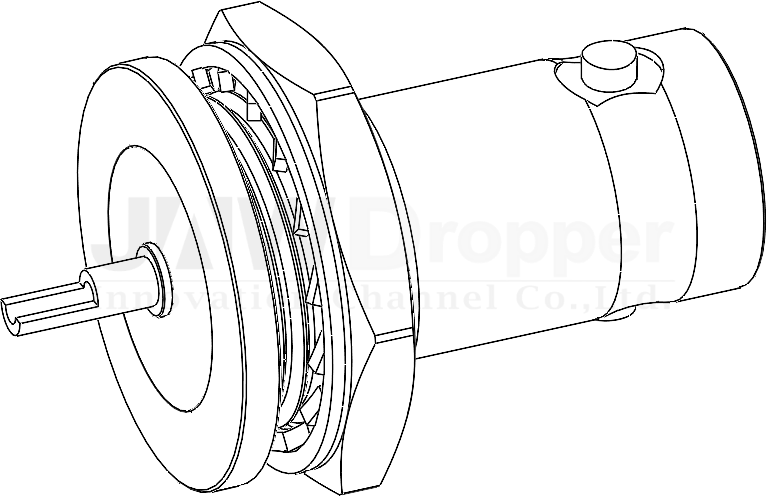

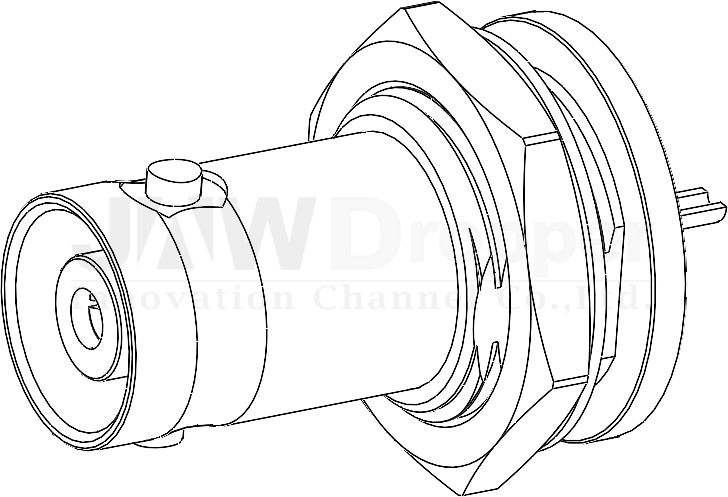

JawDrapper MHV connector series is designed in male or female gender with 50 Ohm impedance for terminating coaxial cable. MHV (Miniature High Voltage) connectors are bayonet locking interconnects that offer a quick-connect functionality that is used where transmission of high voltage is required (up to 5000 volts). MHV connectors are available in straight/right angle, bulkhead, 4-hole panel, and mountless types. These MHV connector designs also include clamp/solder, crimp/solder, or solder attachment methods. This series of RF connectors feature two bayonet lugs on the female connector; mating is fully achieved with a quarter-turn of the coupling nut. The dimensions of the connector conform to the MIL-STD-348B. JawDropper MHV connectors are built to precise microwave and RF industry specifications.

FEATURES AND BENEFITS

  • Used for high voltage applications up to 5000 volts DC
  • Quick connect functionality
  • Conforms to MIL 348 standards
  • Nickel plating

APPLICATIONS

  • Transmission Lines
  • High Voltage Power Supplies
  • Nuclear Control Instrumentation
  • X-Ray

NHV CONNECTOR SPECIFICATIONS

MHV Connectors Specifications – 50Ohm
ImpedanceNon-Constant
Frequency RangeDC – 500 MHz
Voltage Rating1500 Volts RMS Continuous
Dielectric Withstanding Voltage5000 VRMS Max

Note: These characteristics are typical and may not apply to all connectors.
