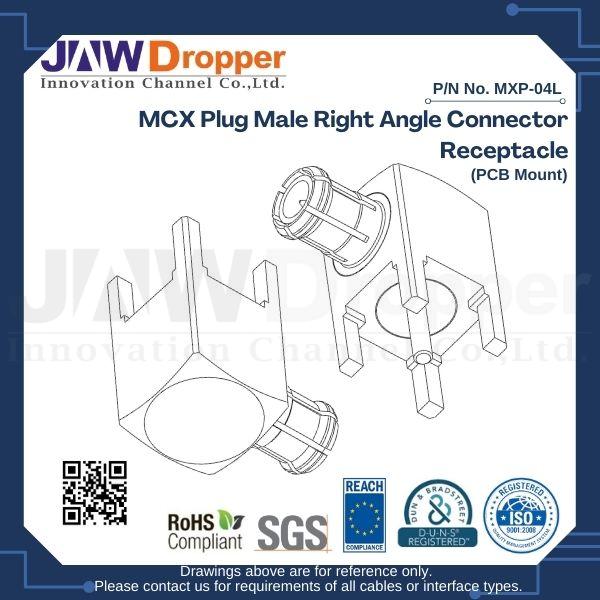

MCX Plug Male Right Angle Connector Receptacle (PCB Mount)

JAW-DROPPER offers Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

MCX CONNECTORS

MCX Plug Male Right Angle Connector Receptacle (PCB Mount) MCX Plug Male Right Angle Connector Receptacle (PCB Mount) MCX Plug Male Right Angle Connector Receptacle (PCB Mount)





JawDrpper MCX (Micro Coaxial) connectors series offers an excellent blend of size, weight, durability, and performance with 50-ohm impedance. MCX RF connectors feature a secure, fast, and easy snap-on coupling mechanism, which is mainly applied in RF cable connections up to 6 GHz. This series of connectors can rotate connector pairs after mating for precise alignment. Applications such as mobile and fixed telecommunications, MCX connectors are characterized by high reliability, long service life, as well as easy and fast mounting. JawDropper MCX connectors meet all the high requirements that micro coaxial connectors are expected to satisfy today.

FEATURES AND BENEFITS

  • Broadband performance with low reflection DC to 6 GHz
  • Quick connect/disconnect snap-on mating reduces installation time
  • Accommodates a wide range of miniature RG flexible coaxial cables, including semi-rigid cable providing customers flexibility in their design and manufacturing
  • Available for 50-ohm applications

APPLICATIONS

  • WLAN
  • Global Positioning System (GPS)
  • PC/LAN
  • Automotive
  • Base Station
  • Head End Equipment
  • Radios
  • Wireless/Network Antenna
  • Instrumentation
  • Telecommunications

MCX CONNECTOR SPECIFICATIONS

MCX Connectors Specifications – 50Ohm
Impedance50 Ohm
Frequency RangeDC – 6 GHz
Voltage Rating225 Volts RMS Max Continuous
Dielectric Withstanding Voltage1000 VRMS Max
VSWR (Return Loss)
     DC – 6 GHz1.3 (-18 dB) Max
Insulation Resistance10000 MΩ Min
Center Contact Resistance5 mΩ Min
Outer Contact Resistance1 mΩ Min
RF Leakage-60 dB Max @ 1 GHz
Insertion Loss0.10 db Max @ 1 GHz
Power Handling95 W Max @ 1 GHz @ 25 ºC

Note: These characteristics are typical and may not apply to all connectors.
