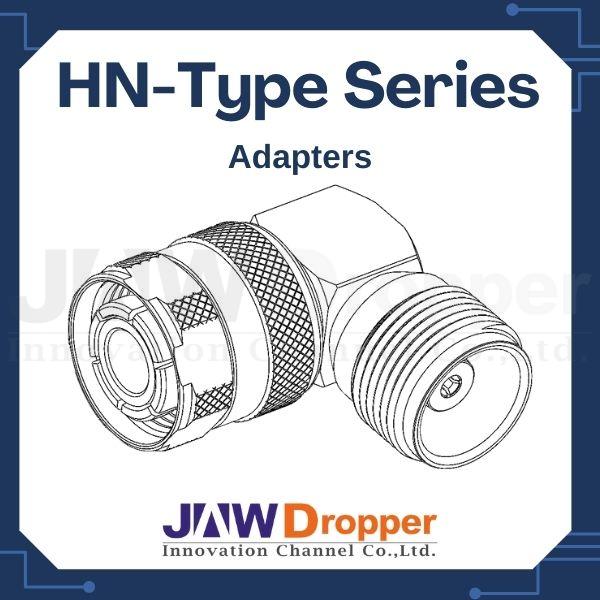

HN Adapters

JAW-DROPPER offers HN Coaxial Connector 50 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

HN-Type CONNECTORS

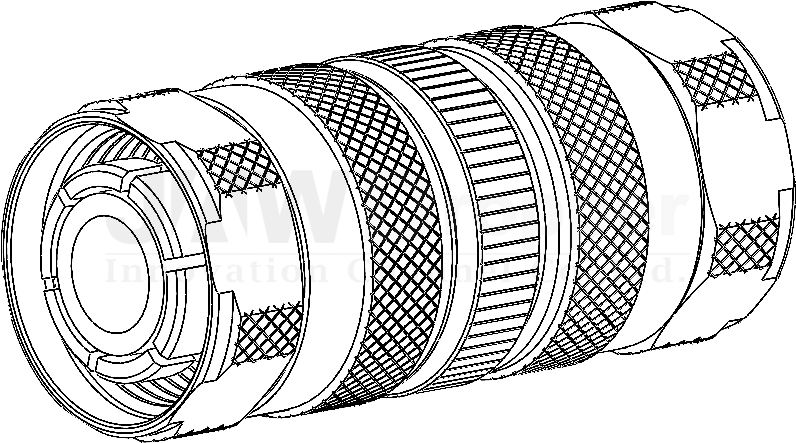

HN Adapters

HN-Type Connectors for Coax from Jaw-Dropper are medium sized, weatherproof units designed for high voltage applications. These connectors are part of the very extensive selection of radio frequency interconnect components with feature captivated contact design which prevents contact recession under extreme mechanical stresses or temperatures. HN-Type connectors are able to handle up to 5,000 volts, making them ideal for use in high power industrial applications from DC to 4 GHz.

FEATURES AND BENEFITS

  • 3/4-20 threaded coupling mechanism withstands rugged applications
  • Captivated contacts prevent movement under temperature extremes
  • Nickel plated bodies provide durable surface finish

APPLICATIONS

  • Instrumentation
  • High-Voltage Test Equipment
  • Airfram
  • Radiation Detection

HN-Type CONNECTOR SPECIFICATIONS

HN-Type Connectors Specifications – 50Ohm
Impedance50 Ohm
Frequency RangeDC – 500 MHz
Voltage Rating1500 VRMS Max Continuous
Dielectric Withstanding Voltage5000 VRMS Min

Note: These characteristics are typical and may not apply to all connectors.
