C Jack Female Straight Connector PIN Solder Receptacle (Flange Mount)

JAW-DROPPER offers C-Type Coaxial Connector 50 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description







C-Type CONNECTORS

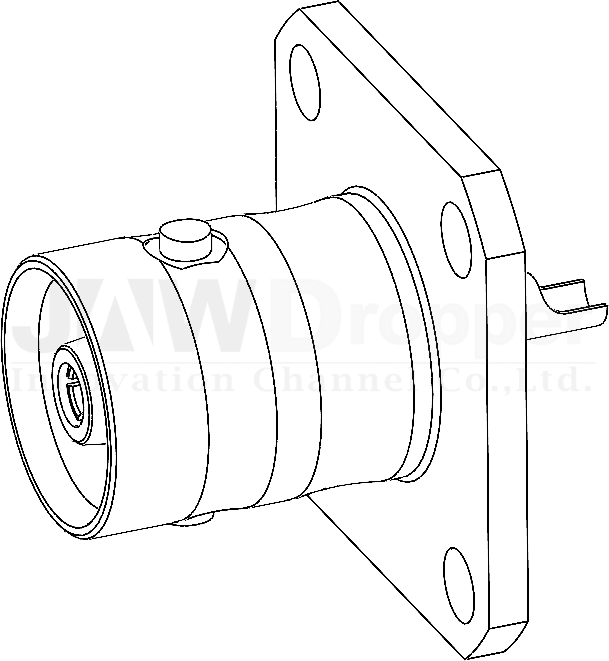

C Jack Female Straight Connector PIN Solder Receptacle (Flange Mount)

C Jack Female Straight Connector PIN Solder Receptacle (Flange Mount)

C Jack Female Straight Connector PIN Solder Receptacle (Flange Mount)

Jaw Dropper C-Type connectors category is a weatherproof medium size series with RoHS and REACH compliant. This series features a coupling two-stud bayonet coupling with no exposed slots on the coupling nut. C-Type connectors can terminate to coax or terminal and are built to precise RF and microwave industry specifications. Jaw Dropper C-Type connectors are available in male or female gender with 50 Ohm impedance and performs up to 11 GHz.

FEATURES AND BENEFITS

  • Two-stud bayonet lock for quick and easy coupling
  • All C-Type connectors are weatherproof

APPLICATIONS

  • Instrumentation
  • Military/Aerospace
  • Industrial

TYPE-C CONNECTOR SPECIFICATIONS

C-Type Connectors Specifications – 50Ohm
Impedance50 Ohm
Frequency RangeDC – 11 GHz
Voltage Rating1500 Volts RMS Max Continuous
Dielectric Withstanding Voltage3000 VRMS Min
VSWR (Return Loss)
     DC – 11 GHz1.35 (-16.5 dB) Max
Power Handling2500 W Max @ 0.1 GHz @ 25 ºC

Note: These characteristics are typical and may not apply to all connectors.
