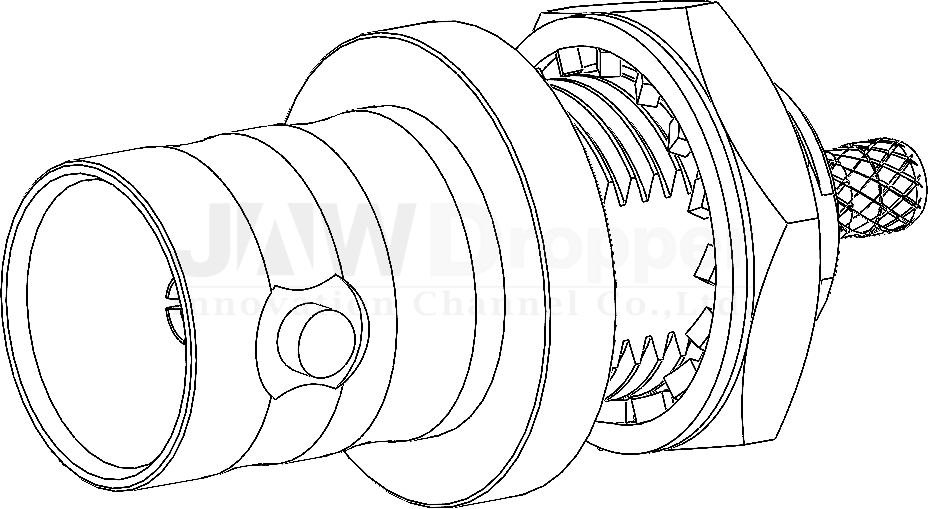

BNC Jack Female Straight Connector Crimp/Solder for Cable (Front Mount)

JAW-DROPPER offers BNC Jack Female Straight Edge Card Mount Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description

BNC CONNECTORS

BNC Jack Female Straight Connector Crimp/Solder for Cable (Front Mount) BNC Jack Female Straight Connector Crimp/Solder for Cable (Front Mount) BNC Jack Female Straight Connector Crimp/Solder for Cable (Front Mount)

The BNC RF connector series features a bayonet-style coupling mechanism that enables effective connection/disconnection with proper locking. Mating is fully achieved with a quarter-turn of the coupling nut. With a classic, dependable design, BNC RF connectors are used with miniature-to-subminiature coaxial cable in radio, television, and other radio-frequency electronic equipment, test instruments, and video signals. BNC connectors are most commonly made to match the characteristic impedance of cable at 50 ohms or 75 ohms. With a standard and trustworthy design, RF BNC connectors are capable of accommodating a large variety of RG and industry-level coaxial cables in diversified termination styles.

FEATURES AND BENEFITS

  • Bayonet coupling mechanism provides proper and effcictive mating and un-mating
  • 50 and 75 ohm impedance designs allow customers to match impedance to system requirements
  • Connectors are available for military, industrial, and commercial applications
  • Designs available for a variety of common BNC coaxial cable types
  • BNC jack female and plug male configurations

APPLICATIONS

  • Antennas
  • Broadcast (50 / 75 Ω)
  • Telecommunications
  • Automotive
  • Computers/LANs
  • Medical Equipment
  • Satcom
  • Base Stations
  • Cable Modems
  • Instrumentation
  • Military/Aerospace

BNC CONNECTOR SPECIFICATIONS

BNC Connectors Specifications – 50Ohm
Impedance50 Ohm
Frequency RangeDC – 4 GHz (DC -12 GHz on Extended Range Designs)
Voltage Rating500 Volts RMS Max Continuous
Dielectric Withstanding Voltage1500 VRMS Max
VSWR (Return Loss)
     DC – 4 GHz1.3 (-18 dB) Max
Insulation Resistance5000 MΩ Min
Center Contact Resistance1.5 mΩ Min
Outer Contact Resistance0.2 mΩ Min
RF Leakage55 dB Max @ 3 GHz
Insertion Loss0.2 dB Max @ 3 GHz
Power Handling316 W Max @ 1 GHz @ 25 ºC



BNC Connectors Specifications – 75Ohm
Impedance75 Ohm
Frequency RangeDC- 4 GHz (DC – 12 GHz on Extended Range Designs)
Voltage Rating500 Volts RMS Max Continuous
Dielectric Withstanding Voltage1500 VRMS Max
VSWR (Return Loss)
     DC – 4 GHz1.5 (-14 dB) Max
     12G Products: DC – 6 GHz1.22 (-20 dB) Max
     12G Products: 6 – 12 GHz1.43 (-15 dB) Max
Insulation Resistance5000 MΩ Min
Center Contact Resistance1.5 mΩ Min
Outer Contact Resistance0.2 mΩ Min
RF Leakage55 dB Max @ 3 GHz
Insertion Loss0.2 dB Max @ 3 GHz
Power Handling316 W Max @ 1 GHz @ 25ºC

Note: These characteristics are typical and may not apply to all connectors.
