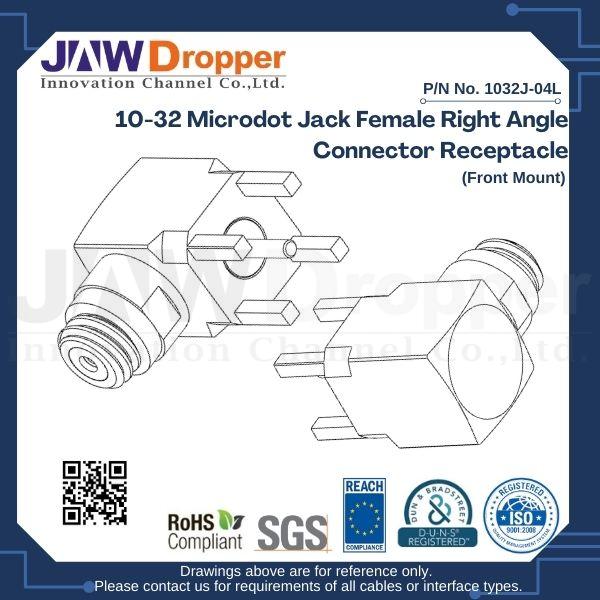

10-32 Microdot Jack Female Right Angle Connector Receptacle (Front Mount)

JAW-DROPPER offers Coaxial Connector 50 / 75 ohms with high quality and excellent performance. Made in Taiwan.  RoHS and REACH Certified.

Description



10-32 Microdot Connectors

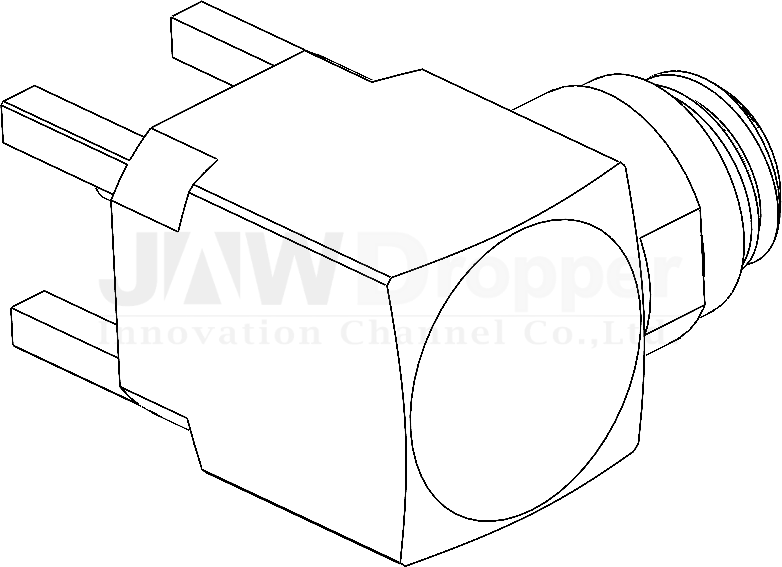

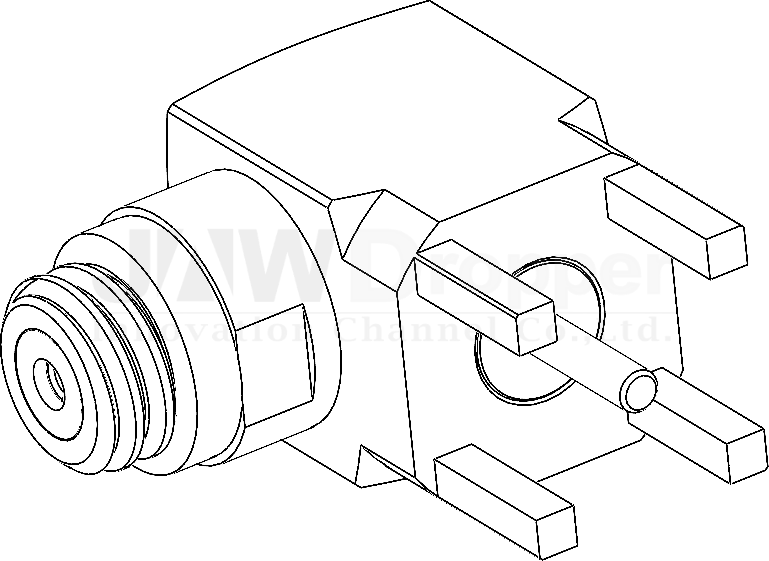

10-32 Microdot Jack Female Right Angle Connector Receptacle (Front Mount)

10-32 Microdot Jack Female Right Angle Connector Receptacle (Front Mount) 10-32 Microdot Jack Female Right Angle Connector Receptacle (Front Mount)

Jaw-Dropper 10-32 (Microdot) connectors series is built to precise microwave and RF industry specifications with 50 Ohm impedance. Its interface is designed to terminate to cable(coax). This series is part of the very extensive selection of radio frequency interconnect components. RoHS and REACH compliant.

FEATURES AND BENEFITS

  • Frequency range up to 2 GHz
  • Screw- lock coupling system
  • High contact quality

APPLICATIONS

  • General Purpose Test
  • Custom Cable Assemblies

10-32 MICRODOT CONNECTOR SPECIFICATIONS

10-32 Connectors Specifications – 50Ohm
Impedance50 Ohm
Frequency RangeDC – 2 GHz Max
Insulation Resistance≥ 5 x 10³ MΩ
Center Contact Resistance≤ 3.0 mΩ
Outer Contact Resistance≤ 3.0 mΩ
Contact Current(DC) ≤ 3 A typ.



Note: These characteristics are typical and may not apply to all connectors.
