MMCX CONNECTORS
The MMCX (Micro-Miniature Coaxial) connectors have a lock-snap mechanism which allows 360-degree rotation. It is a 50-ohm impedance interface with broadband capability of DC to 6 GHz and secure, fast, and easy snap-on / snap-off coupling. The feature of the MMCX connectors is that it’s a micro-miniature version of the MCX with smaller sizes and lightweight. MMCX connectors are designed for densely populated electronic packages and can be found on Wi-Fi PCMCIA cards or GPS as antenna connectors. On small devices like PDAs, GPS receivers, mobile phones, and GSM-Antennas, MMCX connectors also commonly used. In addition, they are also used by various brands of in-ear monitors to connect the cable to the individual earpieces. This allows for the cables to be replaced or swapped.
FEATURES AND BENEFITS
- Broadband performance with low reflection
- High-quality solution at a low cost
- Quick connect/disconnect snap-on mating reduces installation time

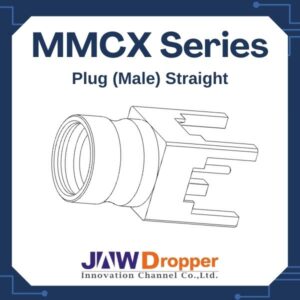

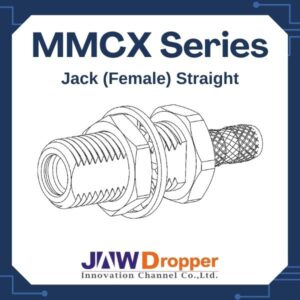

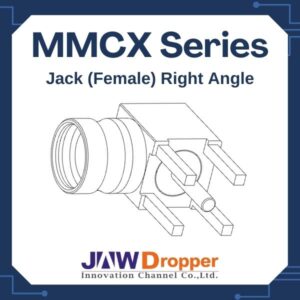

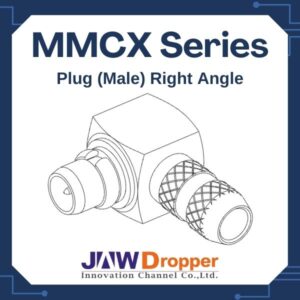

- Available in straight and right angle plugs and printed circuit board connectors
APPLICATIONS
- Antennas
- Instrumentation
- Satcom
- Base Stations
- Telecommunications
- Broadband
- GPS
MMCX CONNECTOR SPECIFICATIONS
| MMCX Connectors Specifications – 50Ohm | |
| Impedance | 50 Ohm |
| Frequency Range | DC – 6 GHz |
| Voltage Rating | 170 Volts RMS Continuous |
| Dielectric Withstanding Voltage | 500 VRMS Max |
| VSWR (Return Loss) | |
| DC – 4 GHz | 1.25 (-19 dB) Max |
| 4 – 6 GHz | 1.40 (-16 dB) Max |
| Insulation Resistance | 500 MΩ Min |
| Center Contact Resistance | 10 mΩ Max |
| Outer Contact Resistance | 5 mΩ Max |
| Insertion Loss | .1 √(f(GHz)) dB Max |
| Power Handling | 63 W Max @ 1 GHz |
Note: These characteristics are typical and may not apply to all connectors.
