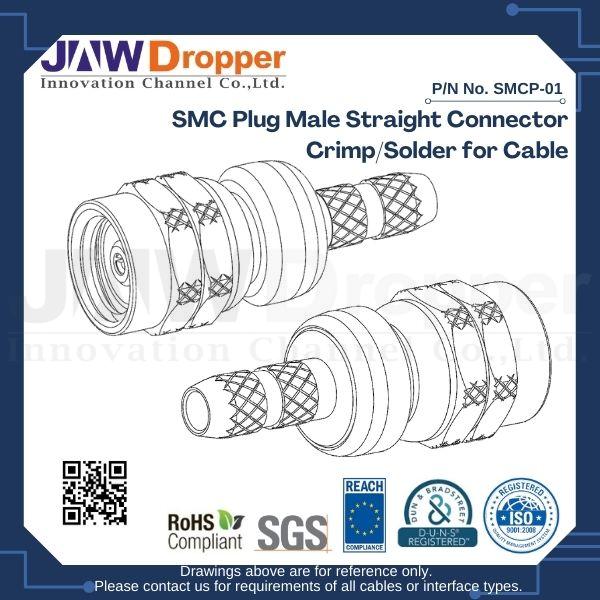

SMC CONNECTORS The SMC connector series is designed with an interface that features threaded coupling with 10-32 threads for various applications up to 6 GHz. The SMC coaxial connectors offer broadband performance with low reflection DC to 10 GHz and are available in 50-ohm configurations. Based on a similar design to the SMB solution, the screw-on locking mechanism of SMC connectors provides a reliable connection which is primarily used in telecommunications and instrumentation applications. FEATURES AND BENEFITS Conforms to the interface dimensions of MIL-STD-348 Threaded coupling ideal for applications where vibration resistance is important Ideal for semi-rigid cables or miniature flexible cables APPLICATIONS Antennas Instrumentation Telecommunications PC/LAN SMC CONNECTOR SPECIFICATIONS SMC Connectors Specifications - 50Ohm Impedance 50 Ohm Frequency Range DC - 4 GHz (DC - 10 GHz on Extended Range Designs) Voltage Rating (Sea Level) 335 Volts RMS Continuous Voltage Rating (70,000 ft) 85 Volts RMS Continuous Dielectric Withstanding Voltage      RG-178/RG-196 Group 750 VRMS Min      RG-174/RG-316/RG-188 Group 1000 VRMS Min Note: These characteristics are typical and may not apply to all connectors.
