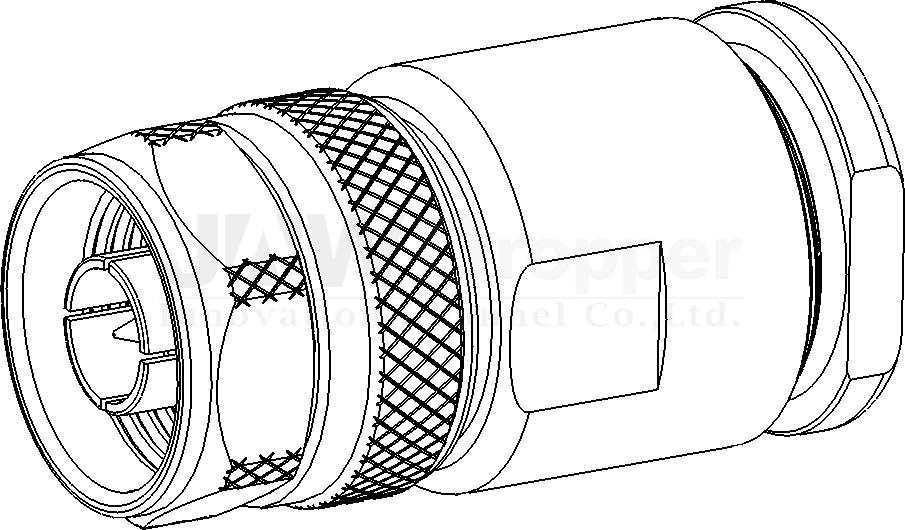

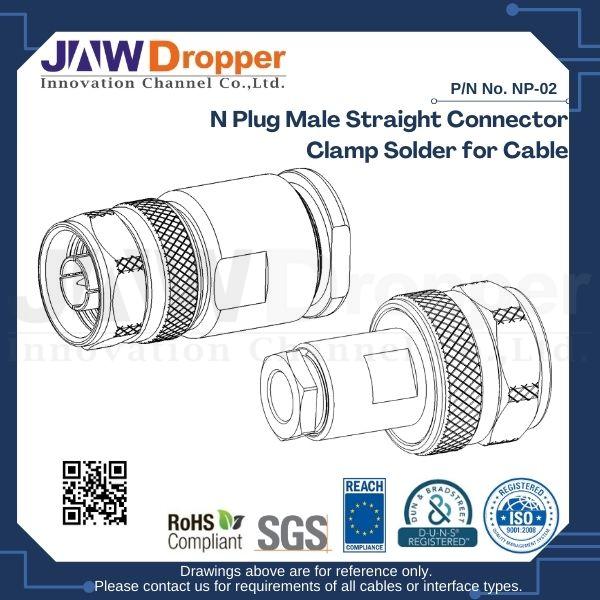

N-Type CONNECTORS

N-Type connectors (N connectors) are used to join coaxial cables as durable, threaded, weatherproof, medium-size RF connectors with consistent performance which includes models that support up to 18 GHz.
N-Type connector features a threaded coupling mechanism and is fully interchangeable with N-Type connectors for all systems where ideal RF and mechanical performance is critical.

FEATURES AND BENEFITS

Broad line of military, industrial and commercial grade products available
Excellent RF performance from DC to 11 GHz, and DC to 18 GHz on extended range designs
Threaded coupling mechanism ideal for vibration resistance
Accommodates a wide range of coaxial cables including low loss types

APPLICATIONS

Antennas
Base Stations
Instrumentation
Satellite Systems
WLAN
Radar Systems
Broadcast
Surge Protection

N-Type CONNECTOR SPECIFICATIONS

N-Type Connectors Specifications – 50Ohm
Impedance	50 Ohm
Frequency Range	DC – 11 GHz (DC – 18 GHz on Extended Range Designs)
Voltage Rating	500 Volts RMS Continuous
Dielectric Withstanding Voltage	1500 VRMS Max
VSWR (Return Loss)
M39012 Straight Connectors
DC – 11 GHz	1.30 (-18 dB) Max
M39012 Right Angle Connectors
DC – 9 GHz	1.35 (-16 dB) Max
9 – 11 GHz	1.5 (-14 dB) Max

N-Type Connectors Specifications – 75Ohm
Impedance	75 Ω
Frequency range	DC to 6 GHz
Return loss (cable connector straight)	≥ 26 dB (typ.)
Insertion loss	≤ 0.1 x √ f [GHz] dB
Insulation resistance	≥ 5 GΩ
Center contact resistance	≤ 1.5 mΩ
Outer contact resistance	≤ 0.25 mΩ
Test voltage	2500 V rms
Working voltage	1400 V rms
Power handling	≥ 128 dB @ DC to 1 GHz
